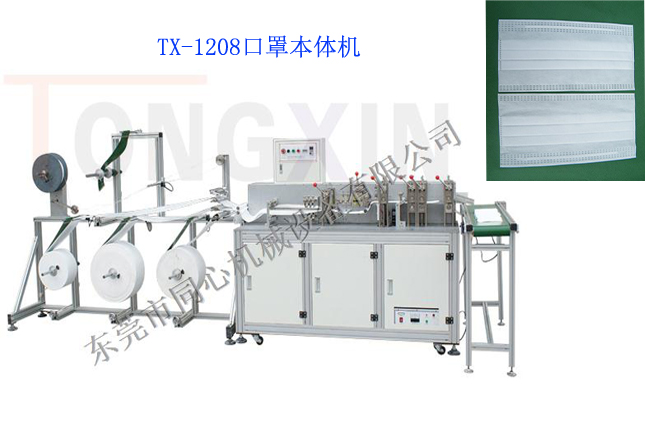

mask blank making machine
|
|
This machine produces non-woven face mask blank body automatically from raw material feeding to inserting, sealing and cutting nose wire, and then to pleating, sealing and cutting non-woven fabric to finished mask blank which will be counted and collected on conveyor, the highest capacity achieves 120 pcs / min, and the the size of mask blank is 175mm(L) X 95mm(W)
|
Product name
|
mask blank making machine
|
Product model
|
TX-1208
|
|
Driving Motion
|
AC Motor & Inverter
|
|
Electric Control
|
PLC
|
|
relay
|
idec
|
|
ultrasonic
|
TaiWan Technology
|
|
voltage
|
220V， 50/60HZ，1P
|
|
power
|
3.5KW
|
|
Air pressure
|
1HP
|
|
speed
|
100-120 pcs/min
|
|
Material Application
|
PP Spunbond & Composition Fibre
|
|
mask size
|
175x95mm （Replacement of accessories can achieve：145x95mm，125x95mm，120x95mm ）
|
|
machine size
|
L:1900mm W:700mm H:1500mm
|
|
Material rack
|
L:2260mm W:600mm H:1720mm
|
Conveyor
|
L:1500mm W:410mm H:980mm
|
Wooden case
|
L:2440mm W:1635mm H:1830mm
|
Gross weight
|
1200kg
|
|
|
|
